HD712 Hydraulic Rock Drill Spare Parts

HD712 Spare Parts
  • Impact power: 18.2 kW (24 hp)
  • Max. Impact Pressure: 175 bar (2538 psi)
  • Impact frequency: 41 Hz (2460 bpm)
  • Hole range: 76 – 102 mm
  • Shank adapter: T38, T45, T51
  • Delkom no: 130 100 103

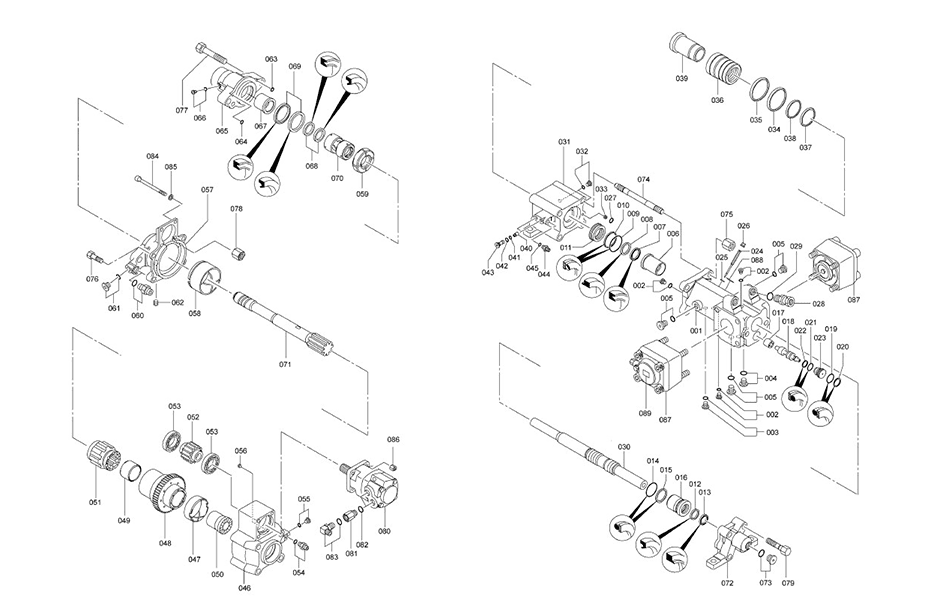

HD712 Exploded View
Driver Chuck
Delkom No : 130100038 Furukawa No : HD712-02003
See Price
Chuck
Delkom No : 130100041 Furukawa No : HD712-02006
See Price
Plain Bearin (F)
Delkom No : 130100045 Furukawa No : HD712-02104 Reference No : HD712-02102
See Price
Bearing Plain (RC)
Delkom No : 130100037 Furukawa No : HD712-02023 Furukawa No : HD712-02002
See Price
Plain Bearin (RB)
Delkom No : 130100039 Furukawa No : HD712-02004
See Price
Gear Drive
Delkom No : 130100042 Furukawa No : HD715-02007
See Price
Bush Chuck Driver
Delkom No : 130100040 Furukawa No : HD712-02025
See Price
Bush (F)
Delkom No : 130100011 Furukawa No : HD712-01012
See Price
Seal Retainer (R)
Delkom No : 130100021 Furukawa No : HD712-01043
See Price
Seal Retainer (F)
Delkom No : 130100016 Furukawa No : HD712-01040
See Price
Damping Piston
Delkom No : 130100074 Furukawa No : HD712-01504
See Price
Piston Bushing
Delkom No : 130100077 Furukawa No : HD712-01507
See Price
Rotation Motor
Delkom No : 130100755 Furukawa No : HD712-06001
See Price
Accumulator Assy.
Delkom No : 130100083 Furukawa No : HD712-97001
See Price
Diaphragm
Delkom No : 130100146 Furukawa No : HD612-07006
See Price
Body
Delkom No : 130100147 Furukawa No : HD712-07002
See Price
Valve
Delkom No : 130100145 Furukawa No : 007120-70134
See Price
Plug
Delkom No : 130100142 Furukawa No : 007010-70030
See Price
Plug
Delkom No : 130100079 Furukawa No : HD615-01508
See Price
Poppet
Delkom No : 130100078 Furukawa No : HD615-01507
See Price
Body Swivel
Delkom No : 130100054 Furukawa No : HD712-02203
See Price
Washer Thrust
Delkom No : 130100046 Furukawa No : HD712-02103
See Price
Bush Front
Delkom No : 130100051 Furukawa No : HD712-02202
See Price
Damping Piston
Delkom No : 130100113 Furukawa No : HD712-02343 Furukawa No : HD712-02303
See Price
Bearing Plain
Delkom No : 130100112 Furukawa No : HD712-02350
See Price
Plug
Delkom No : 130100234 Furukawa No : HD715-01068
See Price
Valve
Delkom No : 130100022 Furukawa No : HD712-01062
See Price
Bolt
Delkom No : 130100057 Furukawa No : HD712-03601
See Price
Bolt
Delkom No : 130100129 Furukawa No : HD715-03606
See Price
Bolt
Delkom No : 130100288 Furukawa No : HD715-03614
See Price
Bolt Set
Delkom No : 130100059 Furukawa No : HD612-03612
See Price
Seal Kit
Delkom No : 130100104 Furukawa No : HD712-99104
See Price
Front Cap
Delkom No : 130100050 Furukawa No : HD712-02201
See Price
Front Cover
Delkom No : 130100044 Furukawa No : HD712-02105
See Price
Front Cover
Delkom No : 130100803 Furukawa No : HD712-02101
See Price
Front Head
Delkom No : 130100752 Furukawa No : HD712-02024
See Price
Front Cylinder
Delkom No : 130100896 Furukawa No : HD712-01524
See Price
Cylinder
Delkom No : 130100001 Furukawa No : HD712-01024
See Price
Back Head
Delkom No : 130100829 Furukawa No : HD712-03003
See Price
Piston
Delkom No : 130100035 Refer. No : HD712-01101
See Price

Note : Limited number of parts are shown. You can use the search section to see other spare parts.
